Vibrating Feeders VPL

The VPL Feeders are used for feeding of non-sticking materials as e.g. natural aggregate, building waste etc. into the crushers, grinding plants or screening equipment, conveying transportation etc.

The feeder is driven by two attached vibrating motors. To change the feeding amount, adjust the unbalanced weights of the vibrating motors or change the frequency by the frequency converter.

VPL Vibrating Feeders = many advantages:

  • minimum operation costs, which results from the balanced machine design, utilization of many years’ of vibration feeder operation experience and unification of parts,
  • easy exchange of the armouring,
  • high quality = high affectivity + highly economic operation.
vpl10

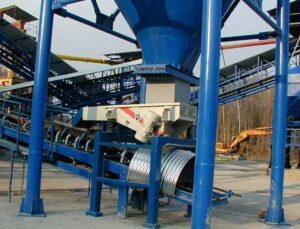

vpl5
vpl6
Parameters of VPL Feeders

The parameters must be dealt with individually depending on the relevant conditions.

Model Name

Width of the feeding deck

Length of the feeding deck

Transported amount

Power Installed

–

mm

mm

m3/h

kW

VPL 70×125

700

1250

80

2×2

VPL 70×150

7001500802×2

 VPL 70×175

 700 1750 80 2×2

 VPL 70×200

 700 2000 80 2×2

 VPL 70×250

 700 2500 80 2×2

 VPL 80×125

 800 1250 80 2×2

 VPL 80×175

 800 1750 80 2×2

 VPL 100×200

 1000 2000 180 2×2,7

 VPL 100×250

 1000 2500 180  2×2,7

 VPL 100×300

 1000 3000 180 2×4,5

 VPL 100×350

 1000 3500 180  2×4,5

 VPL 100×400

 1000 4000 180  2×4,5

 VPL 120×300

 1200 3000 250  2×4,5
